FEATURES

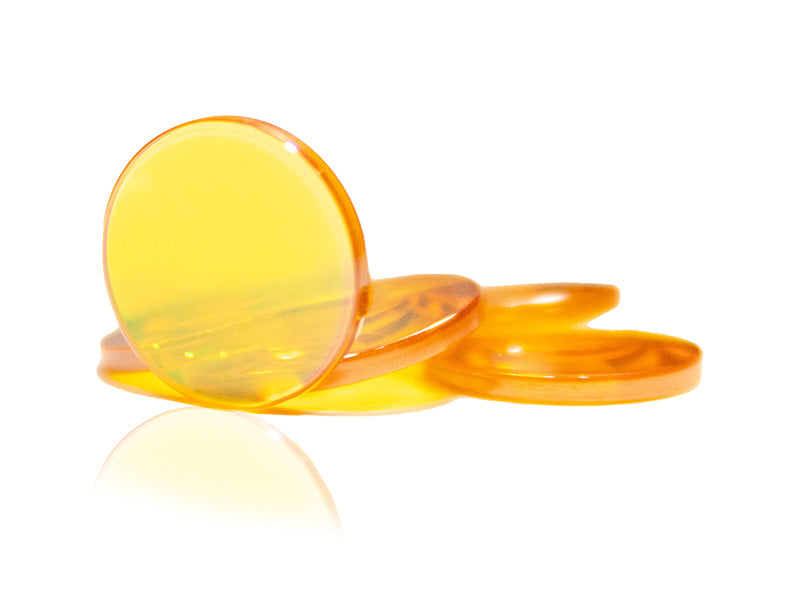

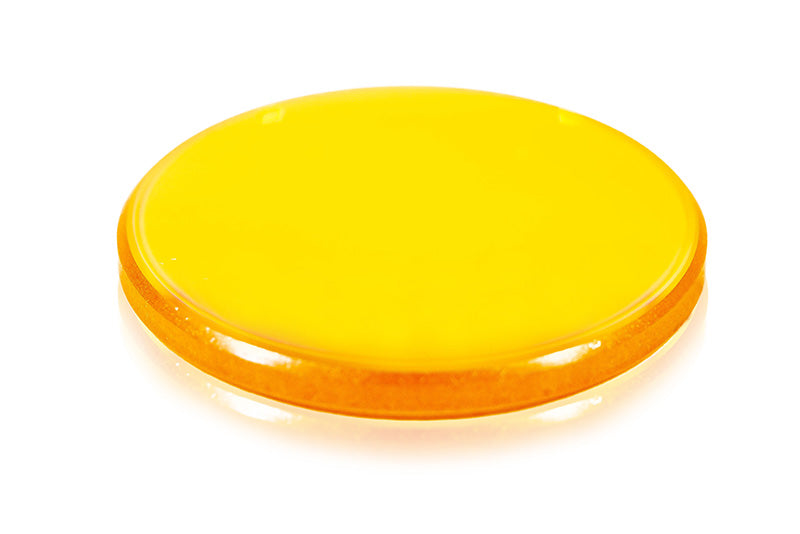

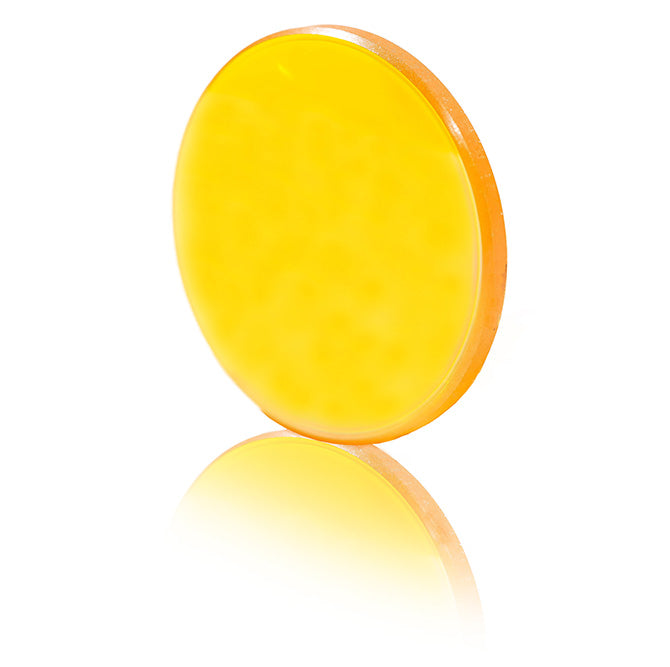

Are you looking for a high-quality focusing lens that will promote optimal performance of your CO2 laser machine? Well look no further! These ZnSe (zinc selenide) lenses are recommended for use in all Boss Laser LS & HP machines. With a 14% improved transmission rate compared to most imported lenses, these provide excellent optical properties including high temperature laser resistance and a longer lasting performance lifespan, allowing you to LASER LIKE A BOSS!!
- LS Machines: Three focal lengths available; 2″, 2.5″, & 4″ (20mm dia.)
- HP Non-Metal Cutting Head: Two focal lengths available; 2.5″ & 4″ (20mm dia.)
- HP Metal Cutting Head: Only uses a 2.5” focal length (25.4mm dia.)
- Older Generation Machines: 1.5” and 3” (limited quantities / call for details)
One of the most commonly asked questions we get is, “What is the difference in the various focal lengths?”. Typically, the shorter the focal length (2″, 2.5″), the finer the point size (depth of field) is of the converging beam. These are traditionally used for higher resolution engraving and marking, but is limited to cutting of thinner materials. NOTE: The 2″ lens is the most often purchased focal length. The longer the focal length (4″), the longer the depth of field of the beam. This set-up is preferred for cutting thicker materials, but provides less detail/resolution to engraving and marking. Keep your optics clean and you’ll have them longer.
Specs
ZnSe Laser Focusing Lenses – PREMIUM
ZnSe Laser Focusing Lenses – PREMIUM
